Double Arm Arm "Lightning Wash" 1 Minute Clean as New Steel Body Resistant for Ten Years

Product Description

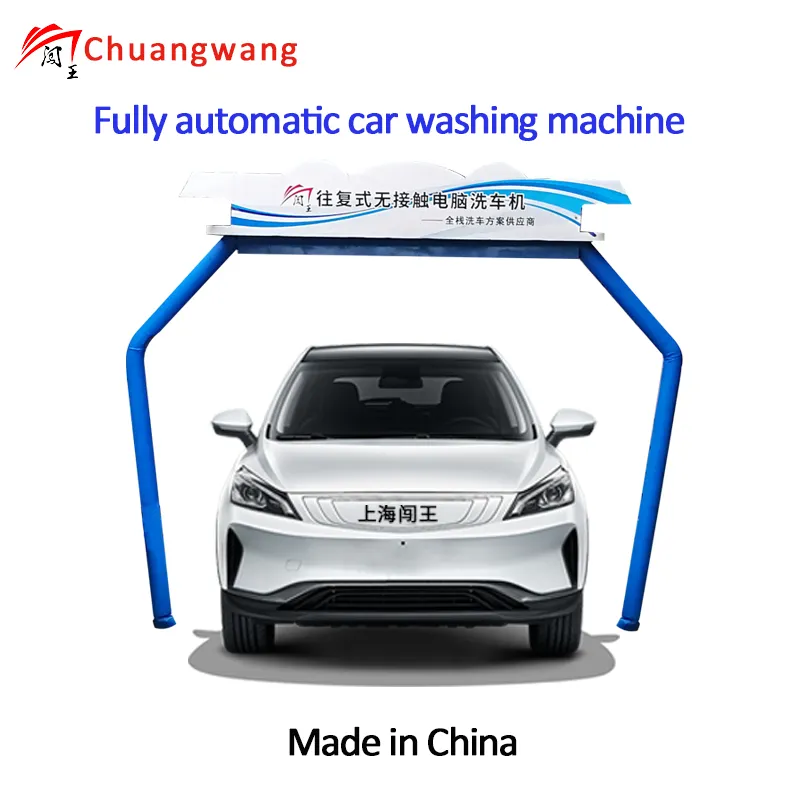

Fully Automatic Car Washing Machine

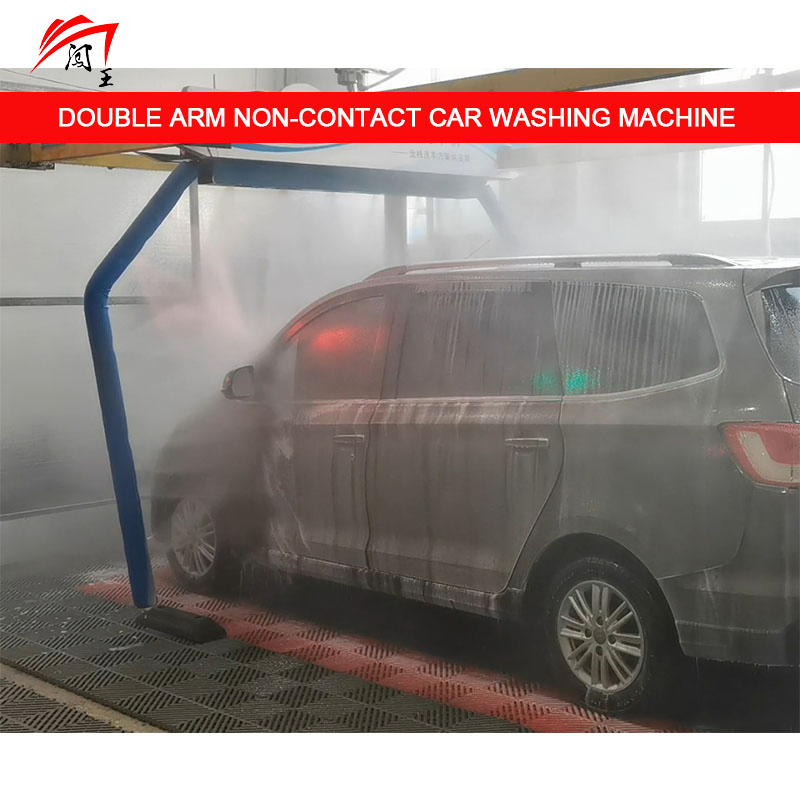

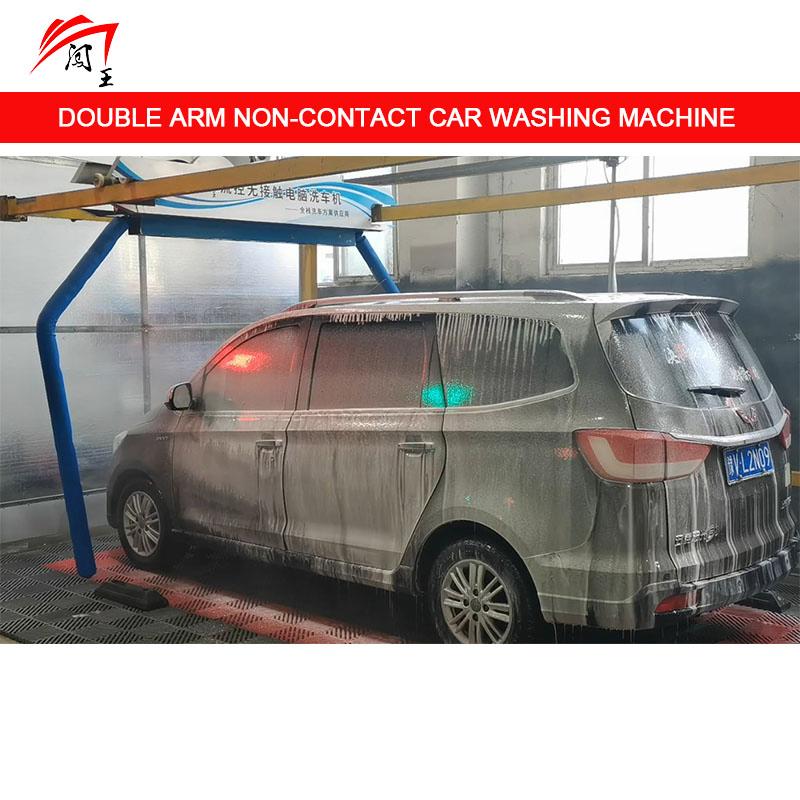

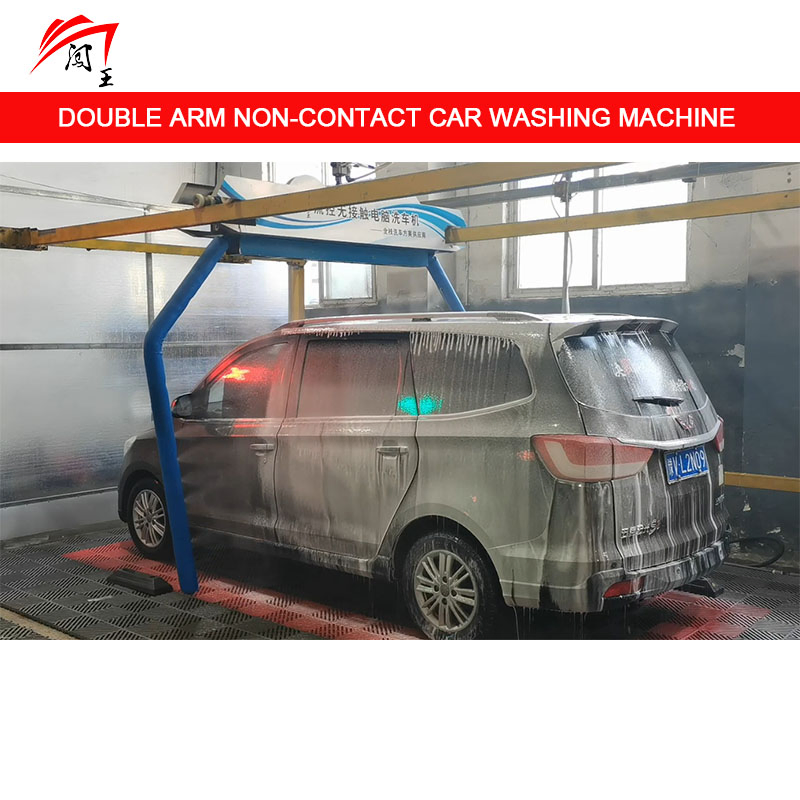

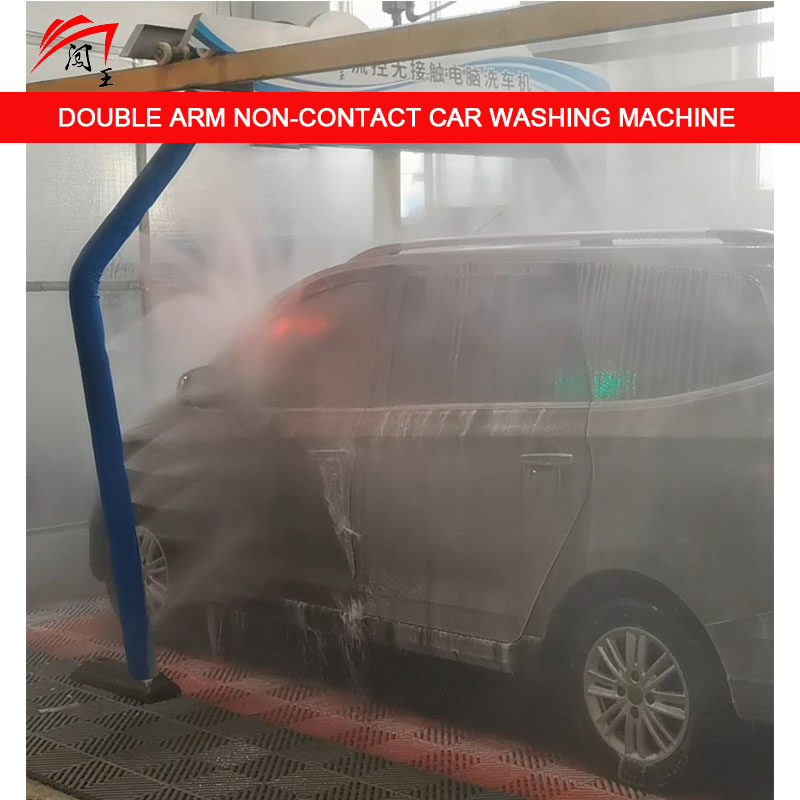

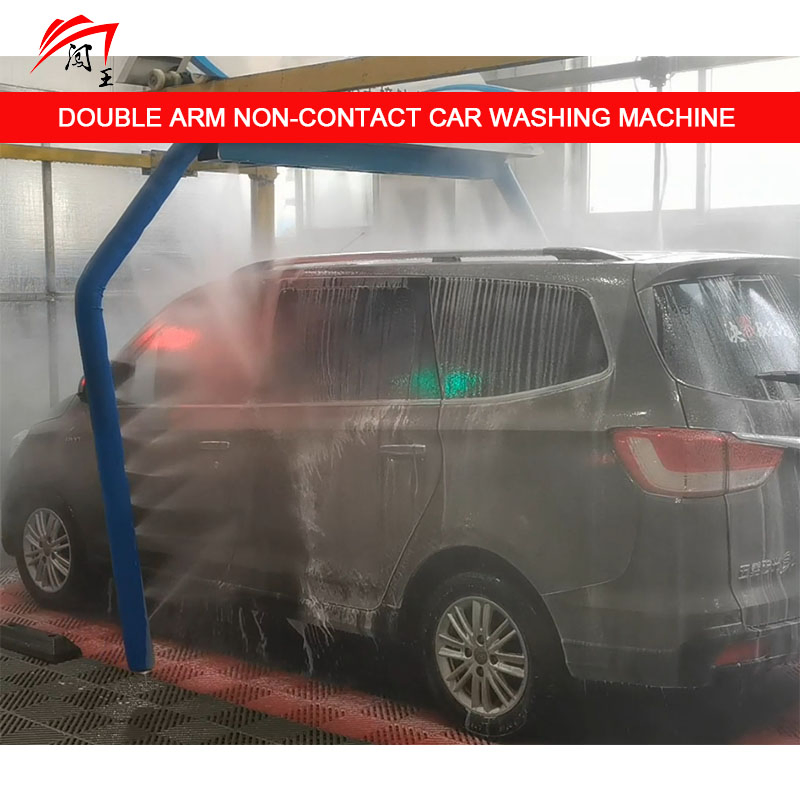

The double rocker arm non-contact car washing machine is an automatic car washing equipment designed with a double rocker arm structure. The left and right rocker arms are equipped with a high-pressure water spray and foam spraying system to complete the cleaning without physical contact with the body. The device can intelligently recognize vehicle models, with rocker arms moving back and forth to cover all angles of the vehicle. Combined with specialized cleaning agents and high-pressure water flow, it can quickly remove dust, mud stains, and other stains. Single vehicle cleaning only takes 3-5 minutes, combining the advantages of efficient water conservation and paint protection. It is suitable for rapid cleaning of vehicles in multiple scenarios such as gas stations and parking lots.

Double Arm Arm Lightning Wash 1 Minute Clean as New Steel Body Resistant for Ten Years

Specification

Product appearance	Double arm arm	Pump pressure	60-80kg
water consumption	80-120L	power consumption	≈ 0.375 °/unit
Motor Power	7.5kW	External power supply	380V
Car wash size	Length 5.5M x Width 2M x Height 2M	Color touch screen	1 set
Foam System	1set	Sensing mode	Photoelectric sensing, proximity sensing
MODE	Manual, automatic	Mode selection	Foam, flushing
Protection system	Overcurrent protection	Storage capacity	More than 1 ton
Pump power	7.5kW or above (self provided)	Water source supply	Pipeline with a score of 6 or above
Product size	Frame length 6M * width 3.5M * height 3M

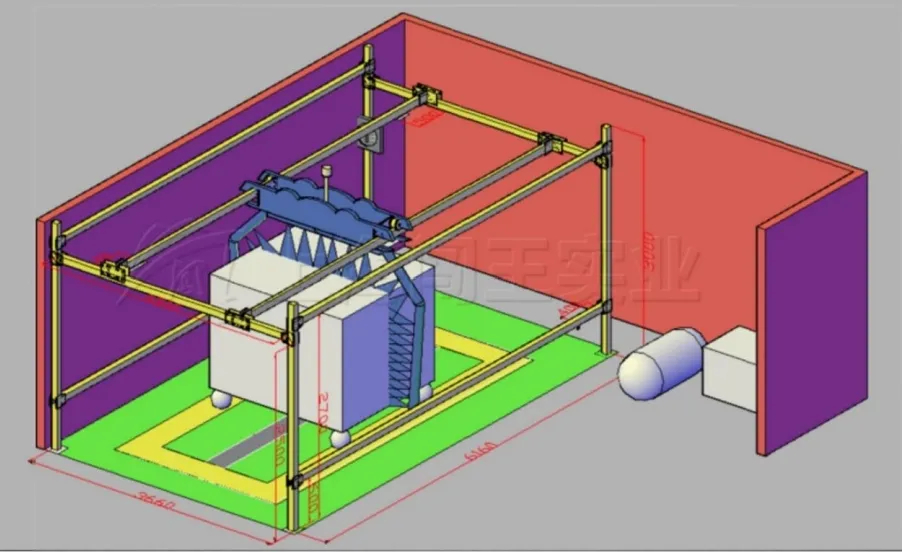

Overall Schematic Diagram

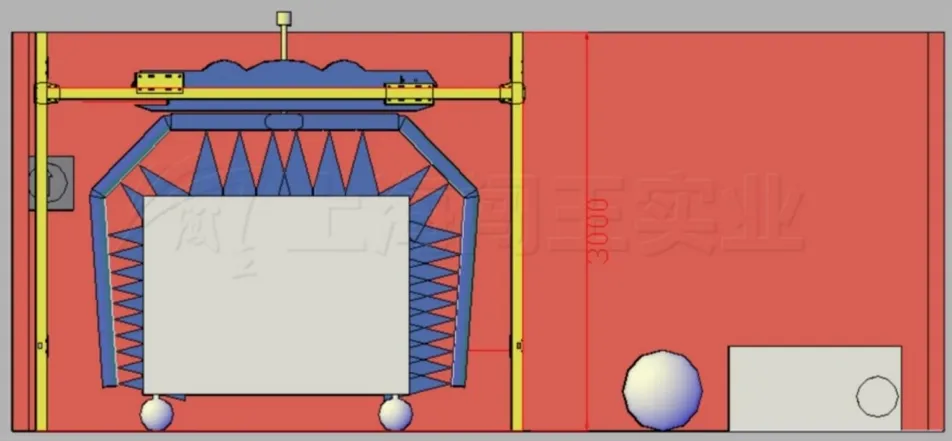

Front View Schematic Diagram

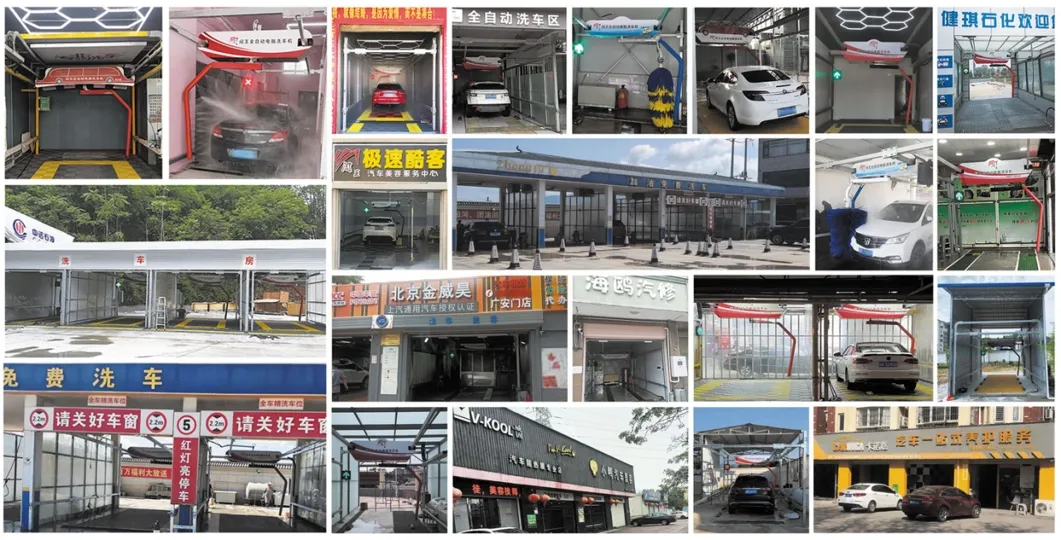

Product scope of application

Contactless Computer Car Washing Machine is a great project for your entrepreneurship! This product is suitable for cleaning various types of vehicles such as small cars, commercial vehicles, off-road vehicles, vans, etc. It can be installed both indoors and outdoors, and is a must-have for gas stations, large parking lots, car wash shops, auto repair shops, and self-service car wash shops. High voltage non-contact car washing machines do not touch the paint surface and will not cause damage to the car paint. Professional car washing shops generally choose to use non-contact car washing machines.

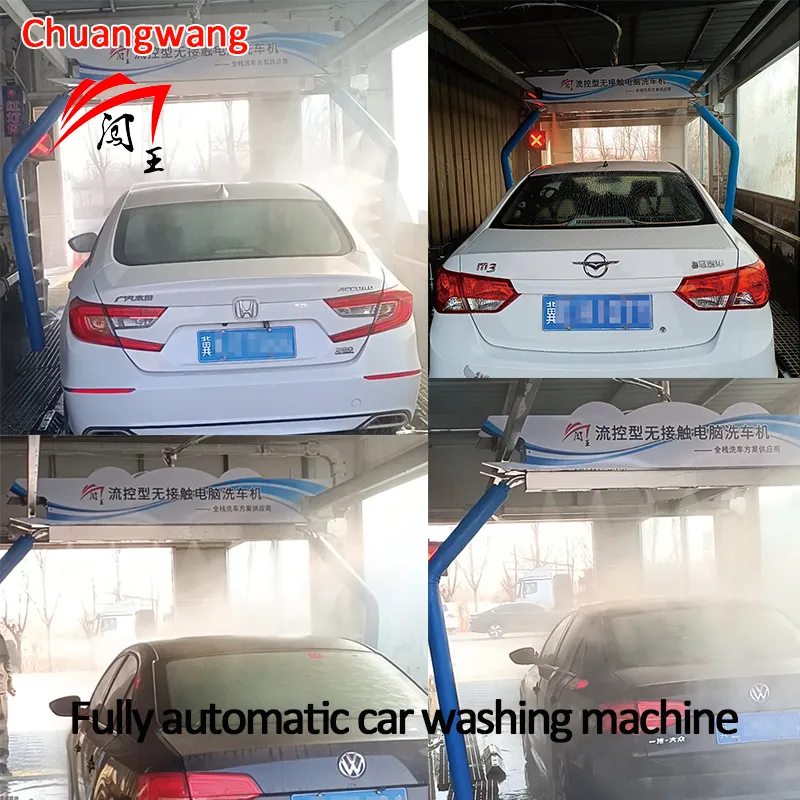

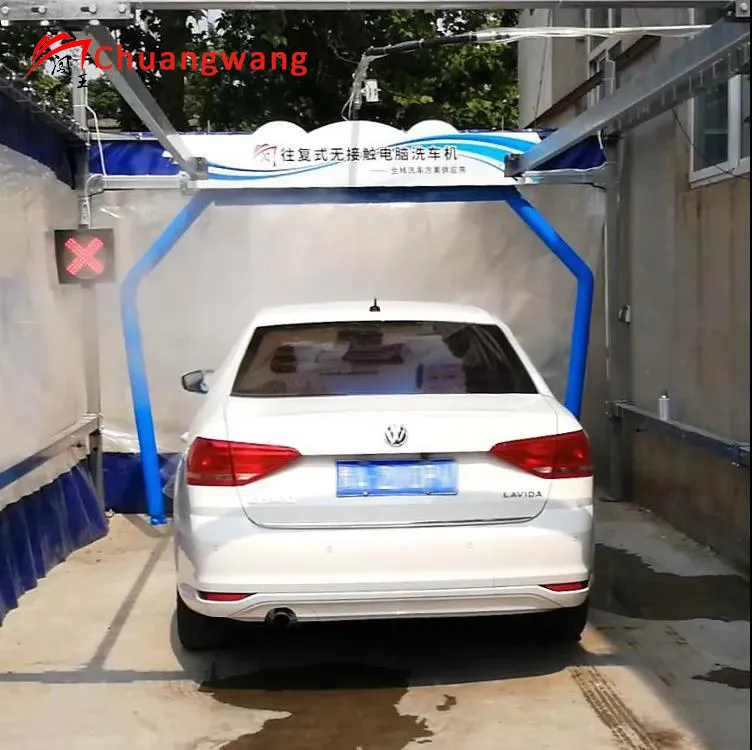

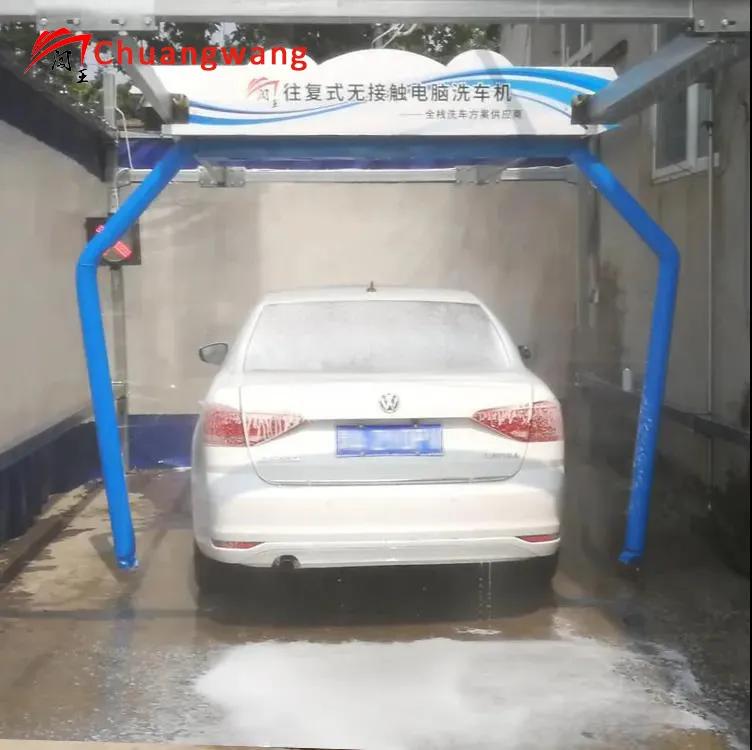

Product car washing process

The washing principle of the contactless computer car washing machine is to park the car at the washing station, tighten the handbrake, and the equipment runs back and forth on the upward track to complete the entire washing process.

1
Foam spraying
2
Pause (manually assisted wiping)
3
Wash the car with clean water
4
Completing the car wash (shining brightly)

Product advantages

Compared with the widely used and outdated manual car washing method, the contactless computer car washing machine has unparalleled advantages:

1. All is fully reliable The car washing machine is controlled by a computer according to a designed program, which can completely avoid personal and equipment accidents caused by manual operation.
2. Quick and efficient Manual car washing usually takes 30 minutes per unit, while computerized car washing machines take about 6 minutes per unit. They can wash 10-12 cars per hour, far exceeding the number of manual car washes and improving the efficiency of car washing work.
3. Not damaging the paint surface The top and sides of the car are high-pressure washed with water knives, and the strong water flow will sweep away the sludge on the car body. The equipment does not come into contact with the car body, and the car wash is completely reliable without damaging the paint.
4. Clean car washing The contactless computer car washing machine sprays foam evenly to fully cover the car without waste. Multiple groups of water knives work to wash the car body under high pressure to make the car cleaner.
5. Humanized program You can independently set the length of the car wash. The pause time after foam spraying can be set independently (the default pause time is 30 seconds) to better cooperate with manual assistance, and the program selection is more user-friendly. When used for self-service car washing, physical buttons can be used to control the water and foam spraying of the car washing machine, making it more reliable.

Double Arm Arm Lightning Wash Detail Image

Packing & Delivery

Packing Details

- Main Equipment: Packed in export-grade fumigation-free plywood crates, wrapped with thickened moisture-proof film. Internally, critical components such as robotic arms and motors are secured with high-strength foam and cushioning pads to ensure shockproof, moisture-proof, and rust-proof protection during transportation.

- Accessories: Fragile items such as control boxes and pipelines are packed separately in individual cases with corresponding labels.

- Packing Dimensions: Approx. 300cm(L) × 100cm(W) × 116cm(H) (may vary slightly depending on specific model)

- Gross Weight: Approx. 800 kg/unit

Delivery Time

- In-stock: Shipped within 7-15 working days after payment confirmation

- Custom/OEM Orders: 20-30 working days (subject to negotiation based on customization requirements)

After Sales Service

For Fully Automatic Car Wash Machine:

Warranty Coverage

- Main Machine: 12 months warranty against manufacturing defects

- Core Components: 12 months for PLC control system, motors, and pumps

Technical Support

- 24/7 Online Support: Email, WhatsApp, and video call assistance

- Comprehensive Guides: Free access to English installation videos, operation manual, and wiring diagram

- Remote Diagnostics: Realtime troubleshooting via remote system access

Spare Parts

- Fast Dispatch: Replacement parts shipped within 48 hours from stock

- Reasonable Pricing: Wear parts offered at preferential rates for longterm customers

- Recommended Spare Kit: Suggest ordering a basic spare parts package with machine for quick maintenance

Installation & Training

- Free Online Training: Stepbystep video guidance for installation and operation

- OnSite Service: Available upon request (charged separately, travel + labor costs apply) with 7-15 days advance notice

- Operator Training: Standard 23 day training program for your technical team

Response Time Commitment:
- Inquiry Response: Within 12 hours
- Fault Resolution: Preliminary solution within 24 hours; complex issues within 48 hours

FAQ

For Fully Automatic Car Wash Machine:

What export certifications does the product have?

A: CE certified and ISO9001 quality management system certified. CB, UL, SASO, and other certifications can be provided for target markets, requiring approximately 3–4 weeks.

Is OEM/ODM customization supported?

A: Yes. Customization available for Logo, color, operation interface language, and voltage (220V/380V/440V/480V 50/60Hz). Customization lead time: 30–45 days, MOQ: 1 units.

What is the delivery lead time?

A: Standard configuration in stock: 15 working days; Customized orders: 35–45 working days. Affected by sea freight schedules, total lead time is recommended to be 60–75 days.

What are the warranty terms?

A: 12-month warranty for the complete machine (excluding consumables). Online diagnostics and video technical support provided with response within 48 hours. Extended warranty service (2–3 years) available for purchase at approximately 3% of goods value per year.

How is installation and commissioning handled?

A: 3D installation videos and Chinese/English manuals are provided. Overseas customers may opt for on-site engineer dispatch (service fee and accommodation costs apply).

What languages does the software system support?

A: PLC control panel has languages built-in and supports remote OTA upgrades. Custom development available to integrate with local payment systems (card, QR code, coin) interface is open.
